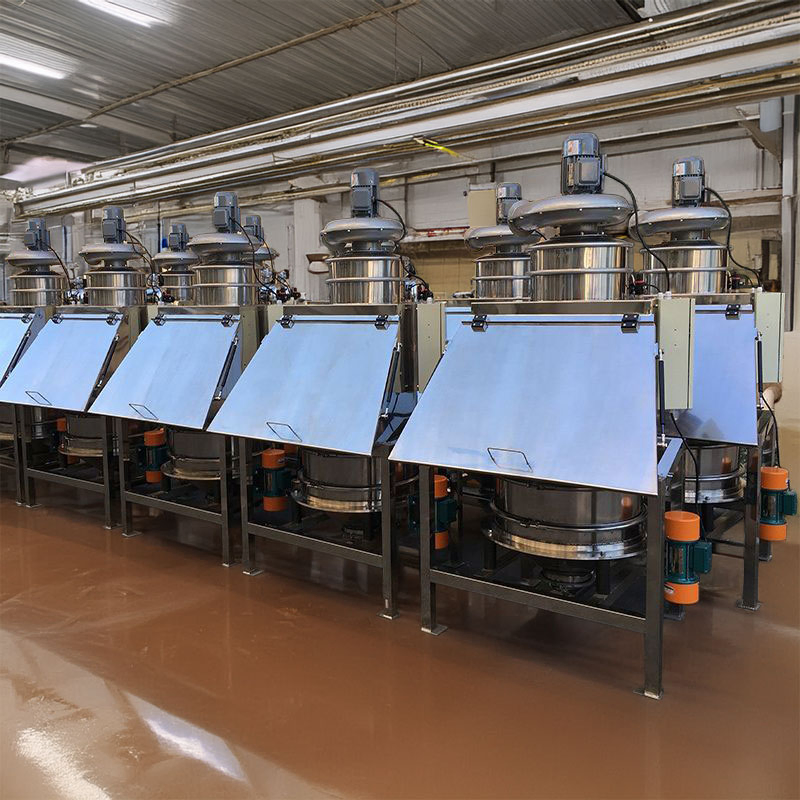

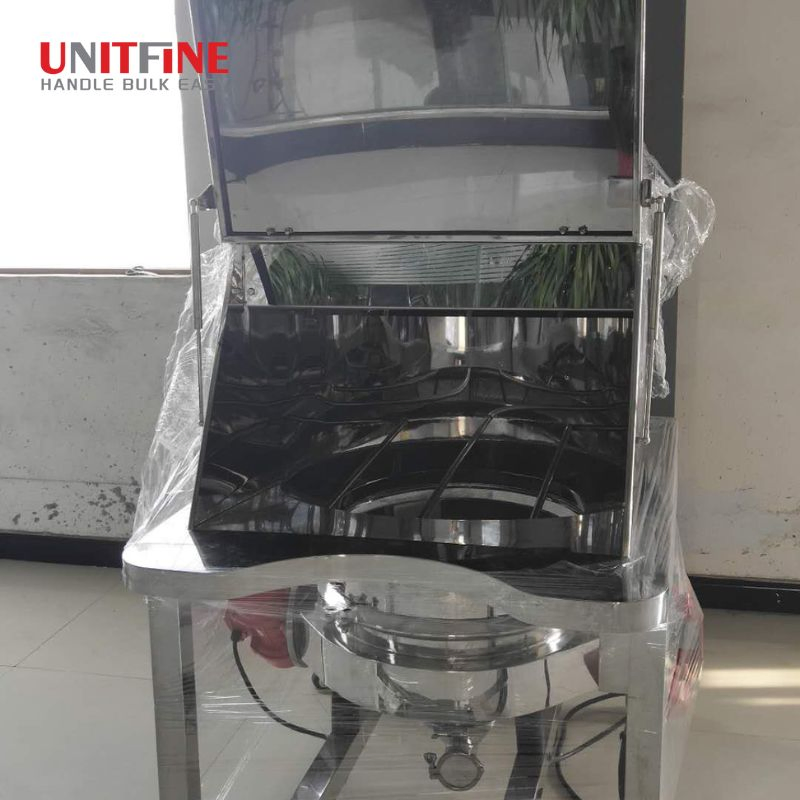

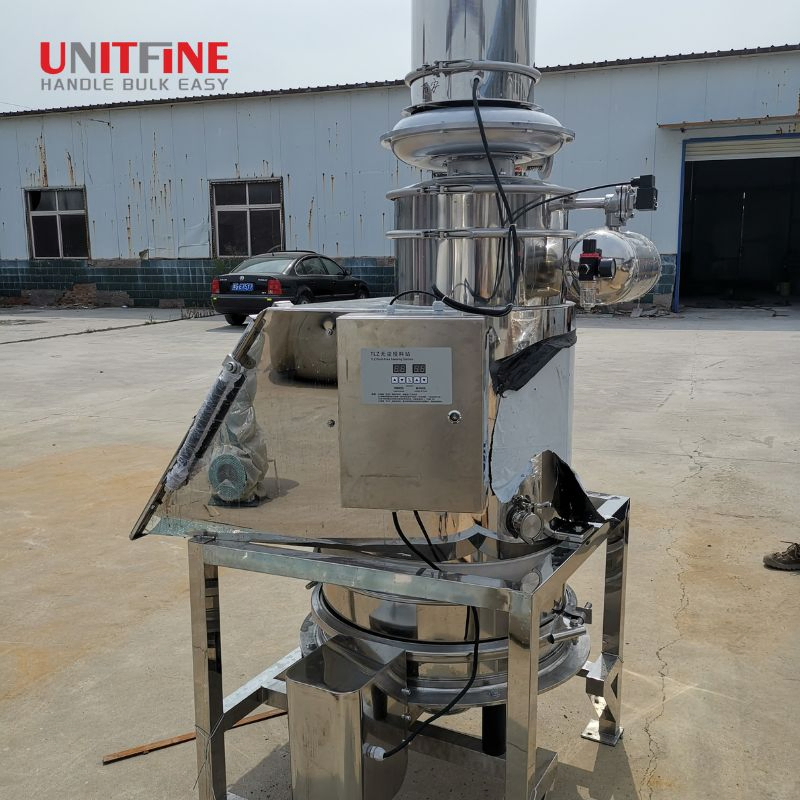

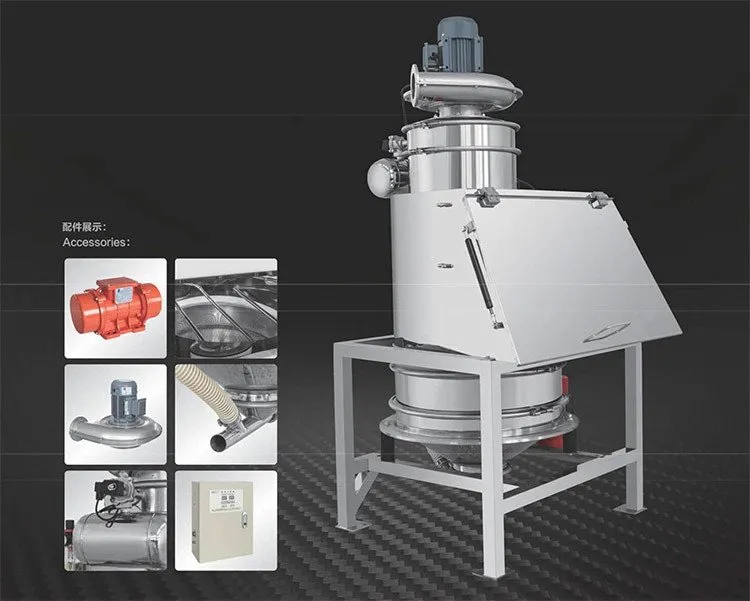

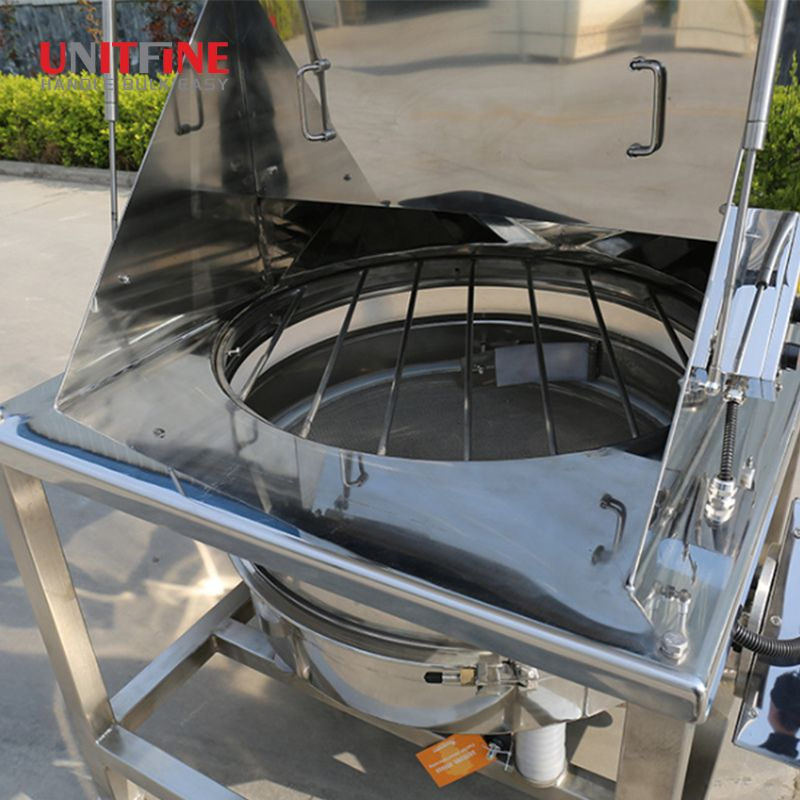

Bag dump stations (also known as bulk material dumping station or manual dumping station) are used to solve dust pollution when dumping powder, pellets, particles, flakes, fiber, or bulk solids. The different quantitative feeder can be selected according to the different capacity and process requirements. It can be used for positive pressure feeding as well as negative pressure feeding.
The modular engineering design guarantees that the machine can be easily installed or configurated with other machines, such as packing machines, conveying equipment, or mixer.
The operation is designed to be very simple in order to make sure that workers can acquire the skill rapidly.
Dedusting system of bag damping station will always guarantee the clean workspace to protect operators and avoid environmental contamination.
Our bag damping station strictly follows the standards of FDA, GMP, and cGMP and can be used in related plants.

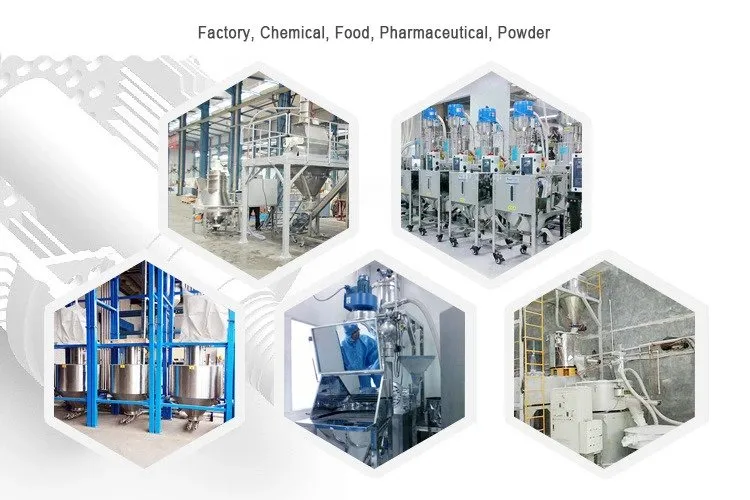

Dust-free feeding stations are suitable for unpacking, delivery, screening, and unloading of small bags of materials in pharmaceutical, chemical, food, battery materials, and other industries.
| Model | UFL-200 | UFL-300 | UFL-800 | UFL-1500 |
|---|---|---|---|---|
| Maximum static pressure (Kpa) | 30 | 34 | 40 | 42 |
| Work stress (Kpa) | <20 | <22 | <28 | <31 |
| Maximum volume (m3/h) | 300 | 330 | 370 | 480 |
| Motor power (Kw) | 3 | 4 | 4 | 7.5 |
| Transmission capacity 5m (Kg/h) | 350 | 500 | 1000 | 1500 |
| Transmission capacity 10m (Kg/h) | 250 | 350 | 800 | 1200 |
| Transmission capacity 15m (Kg/h) | 150 | 250 | 600 | 1000 |
| Transporting pipe diameter (mm) | 50 | 50 | 63 | 63 |
| Applicable equipment | All kinds of extrusion and injection molding machine, various mixing machine | |||
