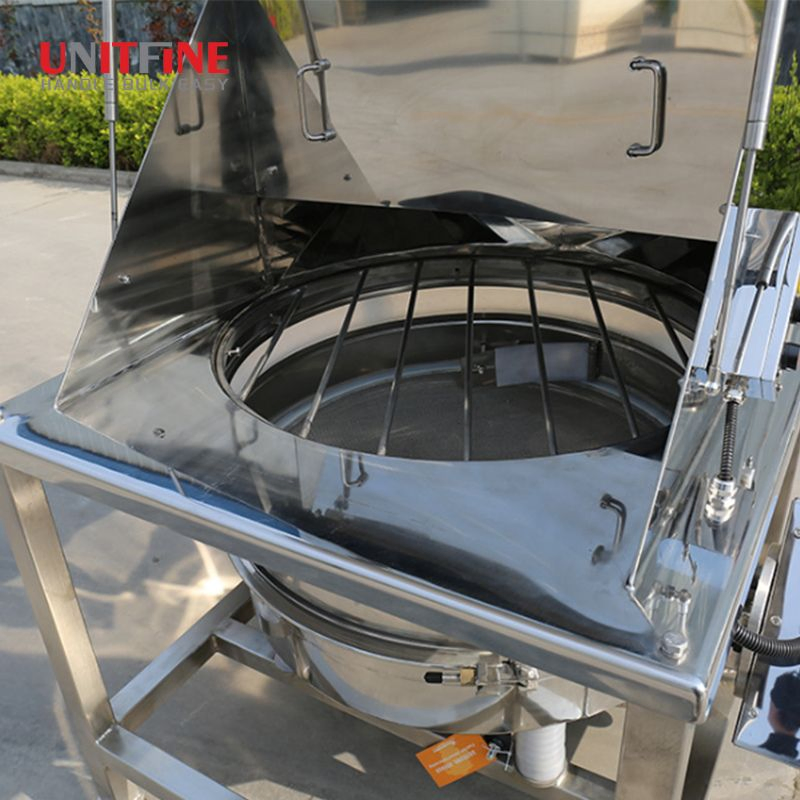

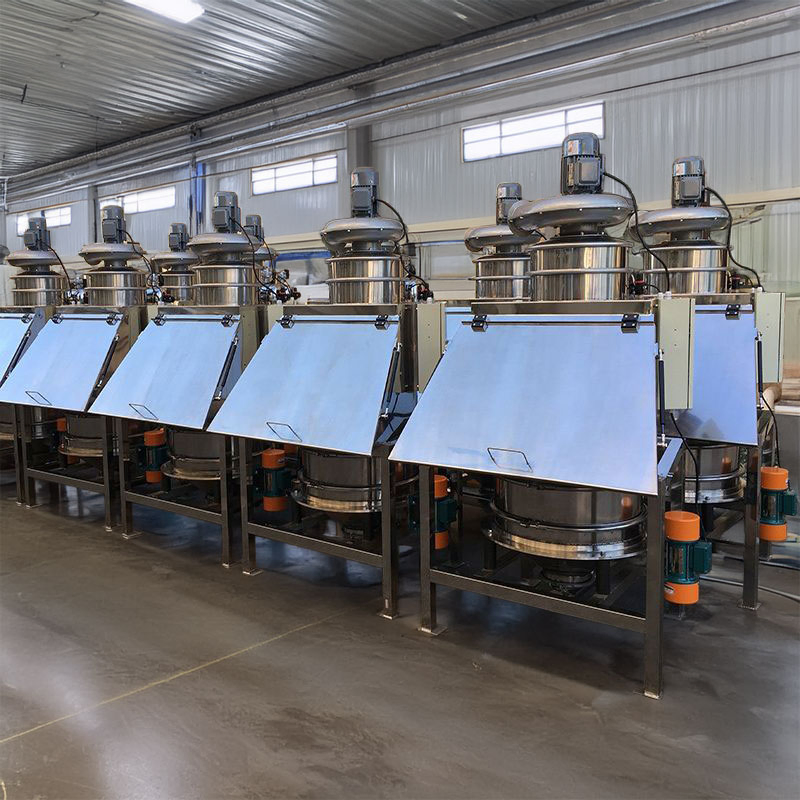

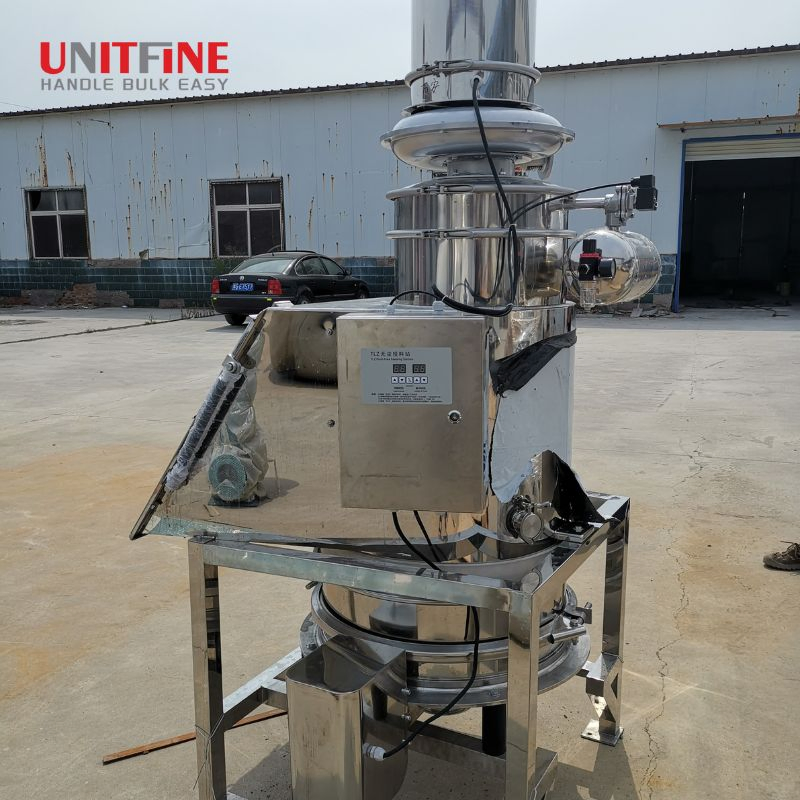

Bag dump stations (also known as bulk material dumping station or manual dumping station) are used to solve dust pollution when dumping powder, pellets, particles, flakes, fiber, or bulk solids.
The different quantitative feeder can be selected according to the different capacity and process requirements. It can be used for both positive pressure feeding and negative pressure feeding.

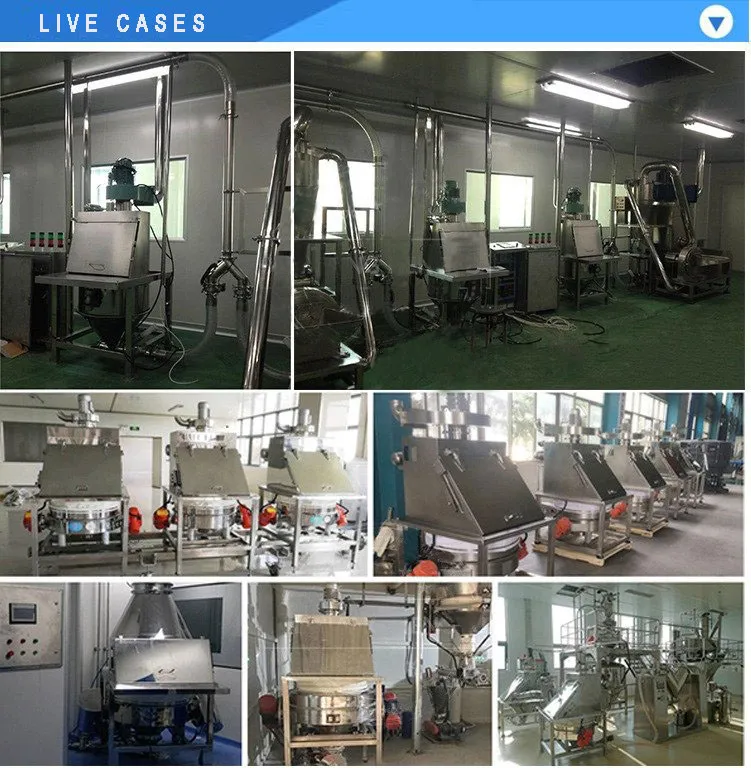

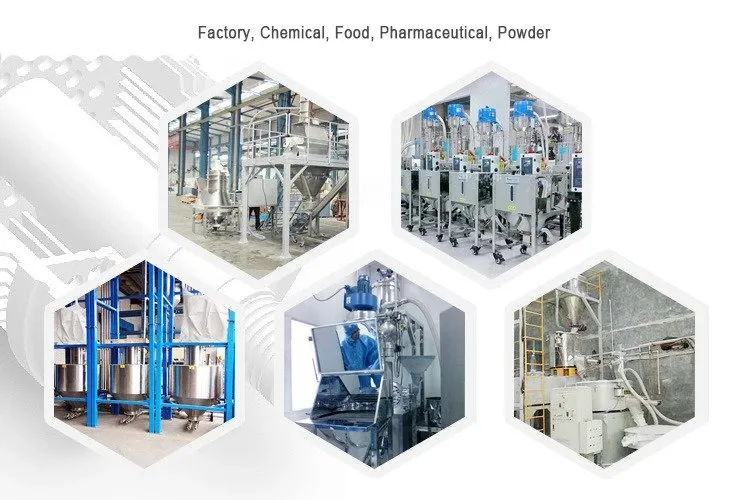

Dust-free feeding stations are suitable for unpacking, delivery, screening, and unloading of small bags of materials in pharmaceutical, chemical, food, battery materials, and other industries.
| Model | UFL-200 | UFL-300 | UFL-800 | UFL-1500 |
|---|---|---|---|---|
| Maximum static pressure (Kpa) | 30 | 34 | 40 | 42 |
| Work stress (Kpa) | <20 | <22 | <28 | <31 |
| Maximum volume (m3/h) | 300 | 330 | 370 | 480 |
| Motor power(Kw) | 3 | 4 | 4 | 7.5 |
| Transmission capacity 5m (Kg/h) | 350 | 500 | 1000 | 1500 |
| Transmission capacity 10m (Kg/h) | 250 | 350 | 800 | 1200 |
| Transmission capacity 15m (Kg/h) | 150 | 250 | 600 | 1000 |
| Transporting pipe diameter (mm) | 50 | 50 | 63 | 63 |
| Inspiratory tube diameter (mm) | 63 | 63 | 76 | 76 |
It is designed to handle a wide range of materials including powders, pellets, particles, flakes, fibers, and various bulk solids across different industries.

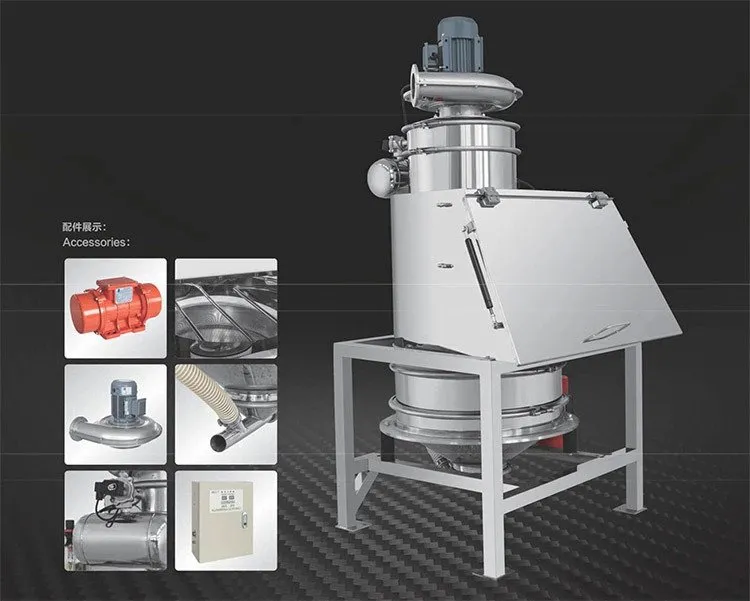

The station features an integrated dedusting system that captures fine particles during the dumping process, protecting operators and preventing environmental contamination.
Yes, our bag dumping stations are strictly manufactured to follow FDA, GMP, and cGMP standards, making them ideal for hygiene-sensitive industries.
Absolutely. The modular structure design allows for easy configuration and connection with packing machines, conveying equipment, or mixers.
The station is designed for "Ease of Cleaning" with stainless steel materials and accessible openings, ensuring minimal downtime during maintenance.
Yes, the system is versatile enough to be used for both positive pressure feeding and negative pressure feeding depending on your process requirements.
