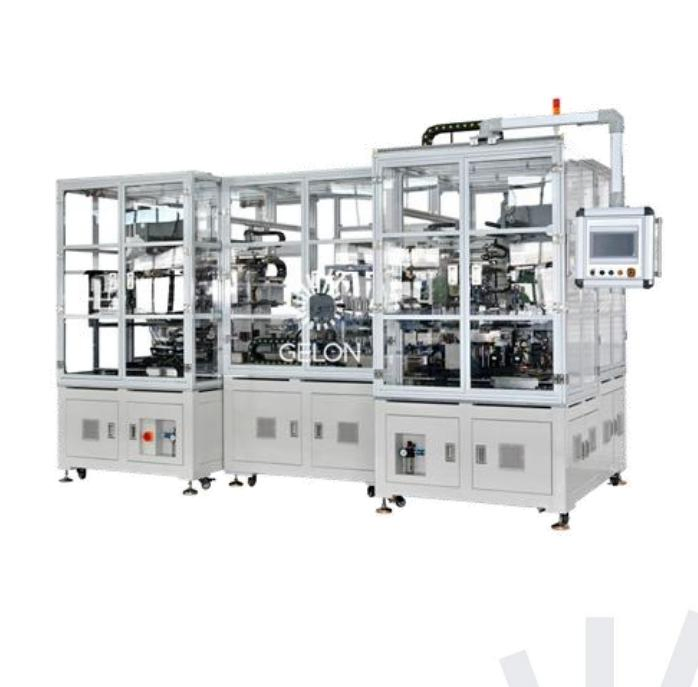

Gelon Lithium Battery Automatic Double Work Position Stacker

1 / 5

Gelon Lithium Battery Automatic Double Work Position Stacker

Customization:	Available
After-sales Service:	Provide
Function:	Abrasion Resistance, High Temperature Resistance

Send Inquiry

Product Description

📋 Basic Information

Model NO.

GN-DP300A

Demoulding

Automatic

Condition

New

Certification

ISO, CE

Warranty

12 Months

Automatic Grade

Automatic

Installation

Vertical

Driven Type

Electric

Mould Life

>1,000,000 Shots

Maximum Outer Diameter

250mm

Position Accuracy

Center Deviation±0.5 mm

Separator Alignment

±0.3 mm

Electrode Alignment

±0.35 mm

⚙️ Product Description

Automatic Double Station Stacking Machine For Lithium Battery

This device is designed to complete the Z-shaped stacking of the separator in the middle of the movement of the mechanical arm. It utilizes a linear servo motion module to achieve high-speed stability and precision. The separator discharge is managed via constant tension, while a correction mechanism ensures uniform discharge. The electrode bin also employs a linear servo motion module to facilitate the conversion of different electrode materials.

Weight	3000 kg
Power Supply	AC 220 V, 2 phase 50 Hz; voltage range ±10%; Power: 4 kW
Air Compressed	0.6~0.8Mpa (4-6kgf/cm2), flow rate 100L/min, utilization rate 50%
Environment	20~35ºC
Relative Humidity	5~55%HR
Cleanliness	No less than 100,000 class, no corrosive/explosive gas or liquid
Vacuum Source	Customer self-provided
Air Supply	-0.6Mpa (Self-provided gas source)

📸 Detailed Photos

💡 One-Stop Solution

Full Turn-Key Project Capability:

Lithium Battery Materials: Including LiMn2O4, LTO, NMC, LiCoO2, Graphite (MCMB), Aluminum foil, copper foils, and battery separators.

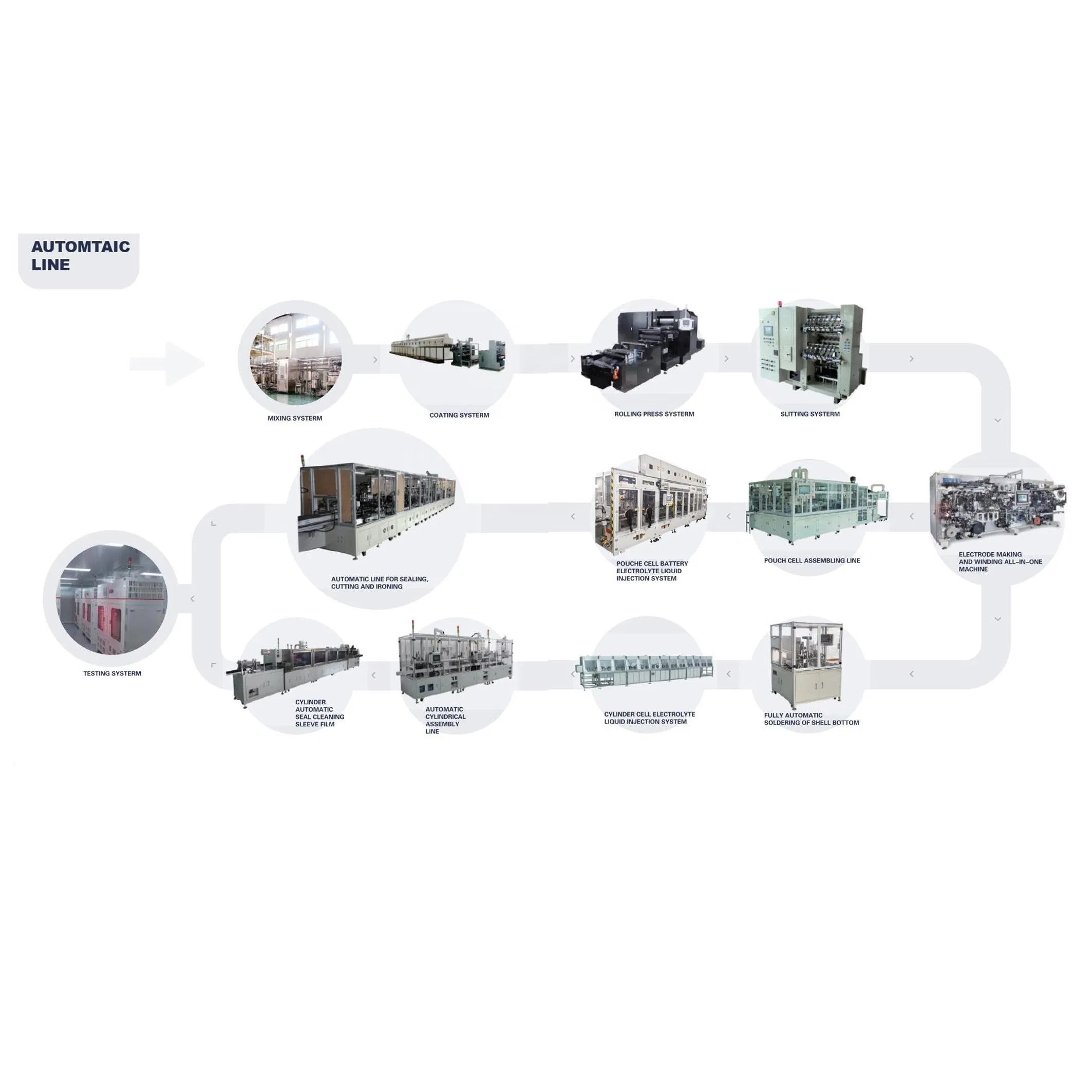

Full Set of Equipments: Mixing machines, coating machines, ovens, rolling machines, welding machines, slitting/cutting machines, winding machines, and sealing machines.
Battery Technology Support: Professional design for laboratories and full-scale production lines based on specific customer requirements.

Frequently Asked Questions

Q1: What is the stacking accuracy of this machine? A1: The machine features high precision with separator alignment accuracy of ±0.3 mm and electrode alignment accuracy of ±0.35 mm.

Q2: Can the machine handle different electrode sizes? A2: Yes, the machine is customizable, and the specific size of the electrodes is determined by the customer's requirements.

Q3: What type of stacking method does this equipment use? A3: It uses the Z-shaped stacking method, which is ideal for high-speed and stable lithium battery production.

Q4: What are the environmental requirements for the installation site? A4: The environment should be maintained between 20~35ºC with a relative humidity of 5~55%HR, and a cleanliness level of at least 100,000 class.

Q5: What is included in the "turn-key project" solution? A5: Our turn-key project includes a full set of battery materials, all necessary production equipment, and comprehensive technological support for lab or factory design.

Q6: Is the demoulding process manual or automatic? A6: The machine is fully automatic, including the demoulding and stacking processes, driven by advanced electric servo modules.
