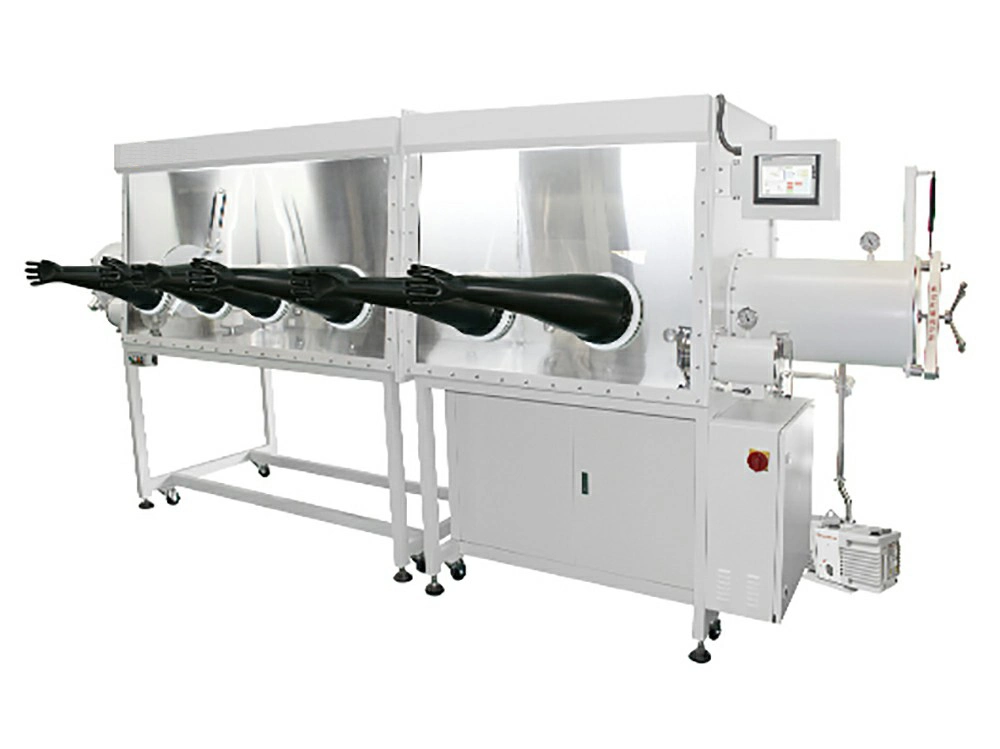

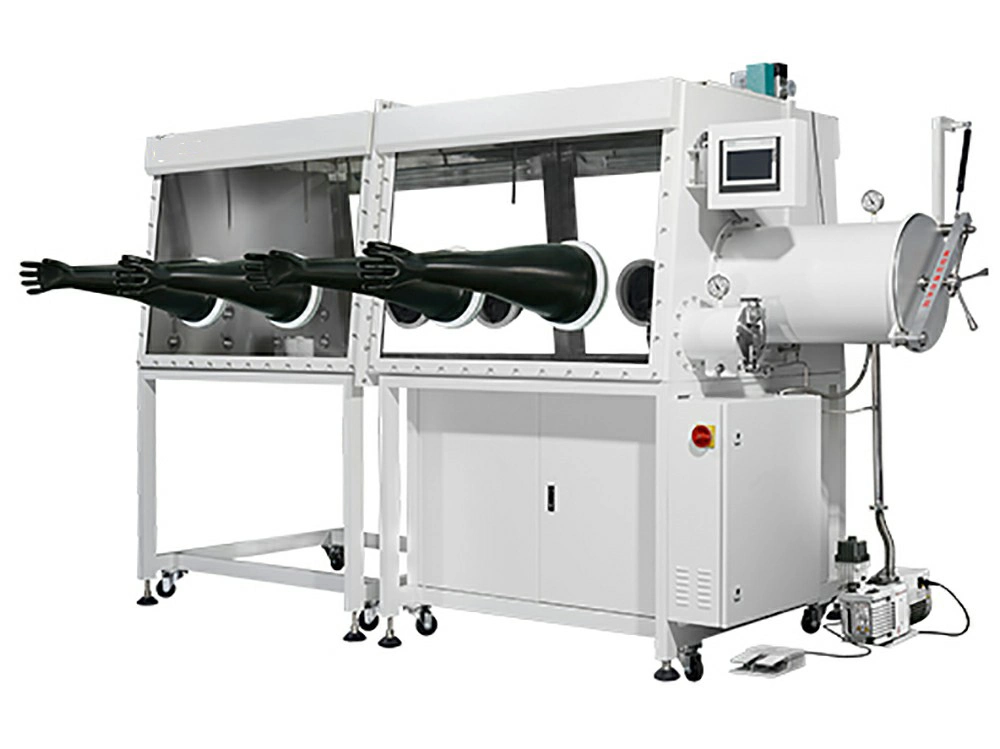

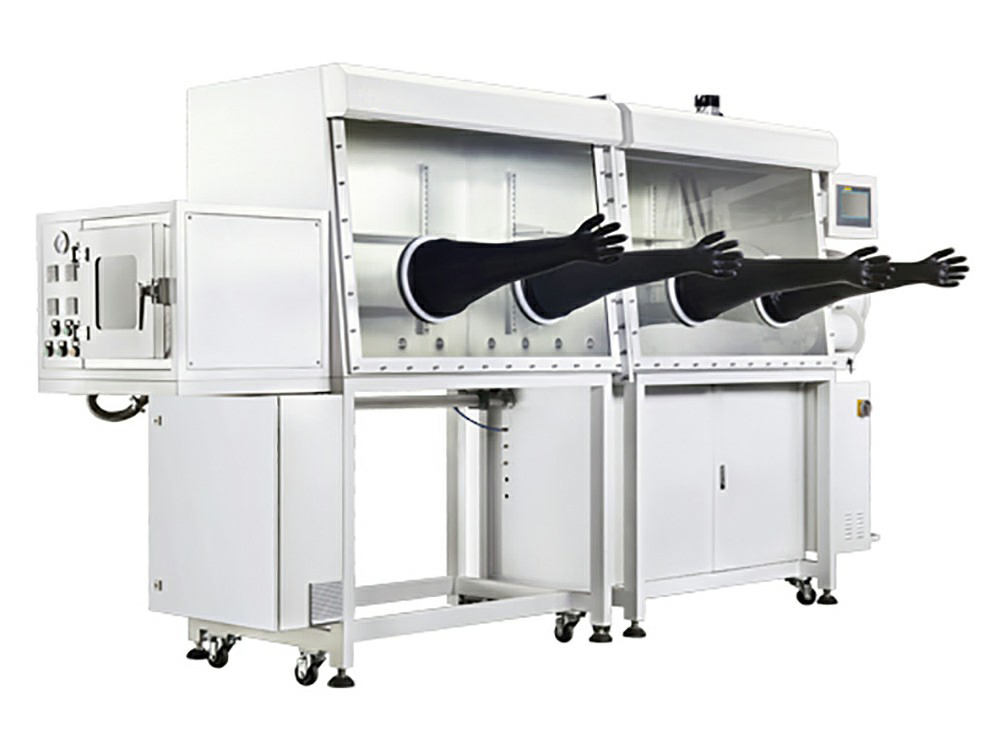

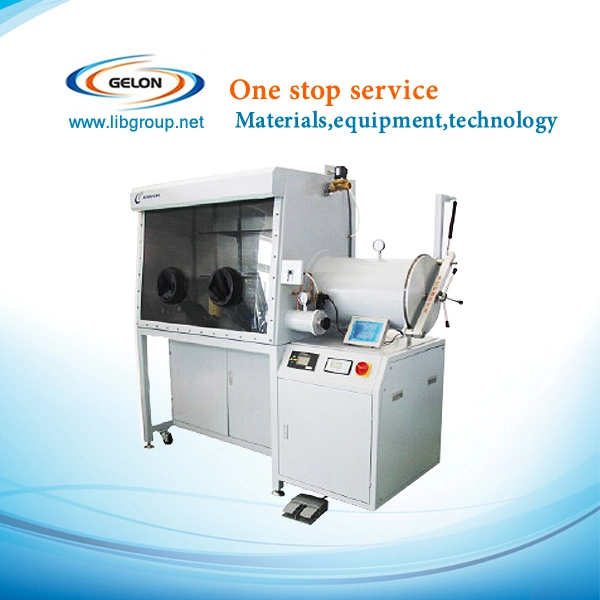

Single Station Vacuum Glove Box with Air Locker (GNVGB-2)
Single Station Vacuum Glove Box with Air Locker (GNVGB-2)
Single Station Vacuum Glove Box with Air Locker (GNVGB-2)
Single Station Vacuum Glove Box with Air Locker (GNVGB-2)
Single Station Vacuum Glove Box with Air Locker (GNVGB-2)
1 / 5
Single Station Vacuum Glove Box with Air Locker (GNVGB-2)
Single Station Vacuum Glove Box with Air Locker (GNVGB-2)
Single Station Vacuum Glove Box with Air Locker (GNVGB-2)
Single Station Vacuum Glove Box with Air Locker (GNVGB-2)
Single Station Vacuum Glove Box with Air Locker (GNVGB-2)

Single Station Vacuum Glove Box with Air Locker (GNVGB-2)

Customization: Available
After-sales Service: 1
Warranty: 1
Send Inquiry

Product Description

!

Basic Specifications

Model NO.
GNVGB-2 single work port glove box
Humidity Control
0-2000ppm-Xentaur, Xdt-Pm (Us)
View Window
Tempered Glass 8mm
Oxygen Control
0-10ppm, 0-100ppm, 0-1000ppm, 0-25%
Size
1220(L)*750(W)*900(H)mm (900mm H for Base)
Box Material
Ss. 304
Transport Package
Standard Exporting Package
Specification
glove box with 1, 2, 4 station and more stations
Production Capacity
2000set/Month
Glove Box Banner
✓

Application

Heavy duty stainless steel structure glove box: a clean, air-tight, controlled environment for a wide range of researching processes in material science, chemistry and semiconductor and related industries.

★

Key Features

  • Robust Construction: Stainless Steel Vacuum Glove Box with Airlock chamber and gauges; transparent front panel makes operation easy.
  • Vacuum Pressure: Airlock chamber up to 0.05 Torr (0.067 mbar); Main glove box up to 0.5 Torr (0.67 mbar).
  • Positive Pressure: Max 1.1 atm (Note: gloves cannot work if pressure is higher than 1.1 atm/810 torrs).
  • Gas Integrity: Inert gases pressure maintain > 12 hours. Main chamber leakage rate: < 3 torr/hour.
Separator

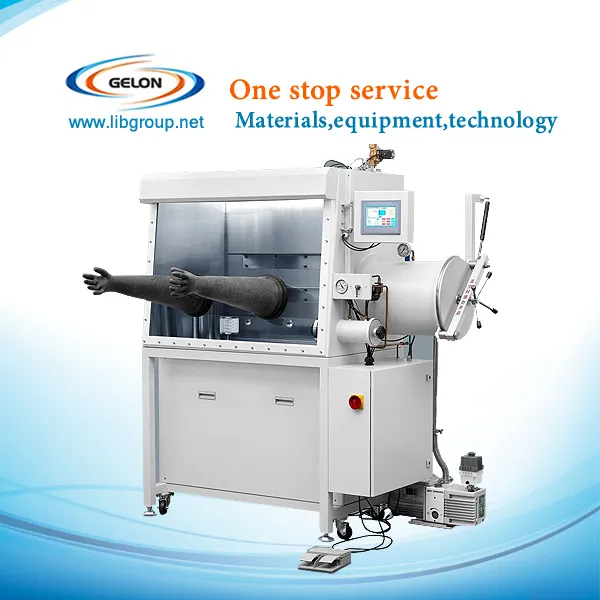

Vacuum Glove Box View 1

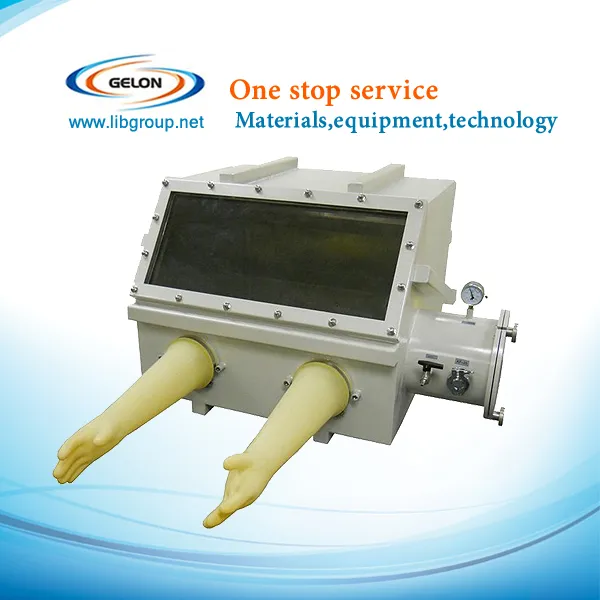

Vacuum Glove Box View 2
Model VGB-1 VGB-2 VGB-3
Dimension (mm) 600×820×470 1230×770×780 1200×1195×1100
Air-lock chamber (mm) Φ200×230 Φ135×300 Φ340×400
Operating room (mm) 450×600×420 700×795×720 1200×700×1100
Glove port (mm) Φ145 Φ145 Φ145
Max positive pressure 0.06MPa 0.06MPa 0.06MPa
Vacuum degree 0~-0.1MPa 0~-0.1MPa 0~-0.1MPa
FOB Price (USD) 4800 8800 10000

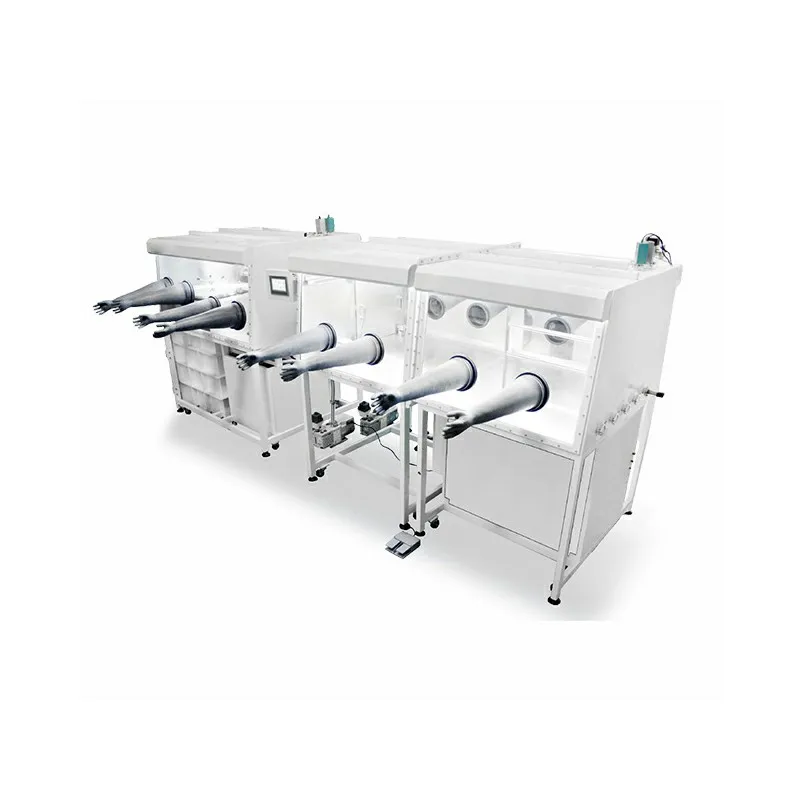

Product Detail 1
Product Detail 2

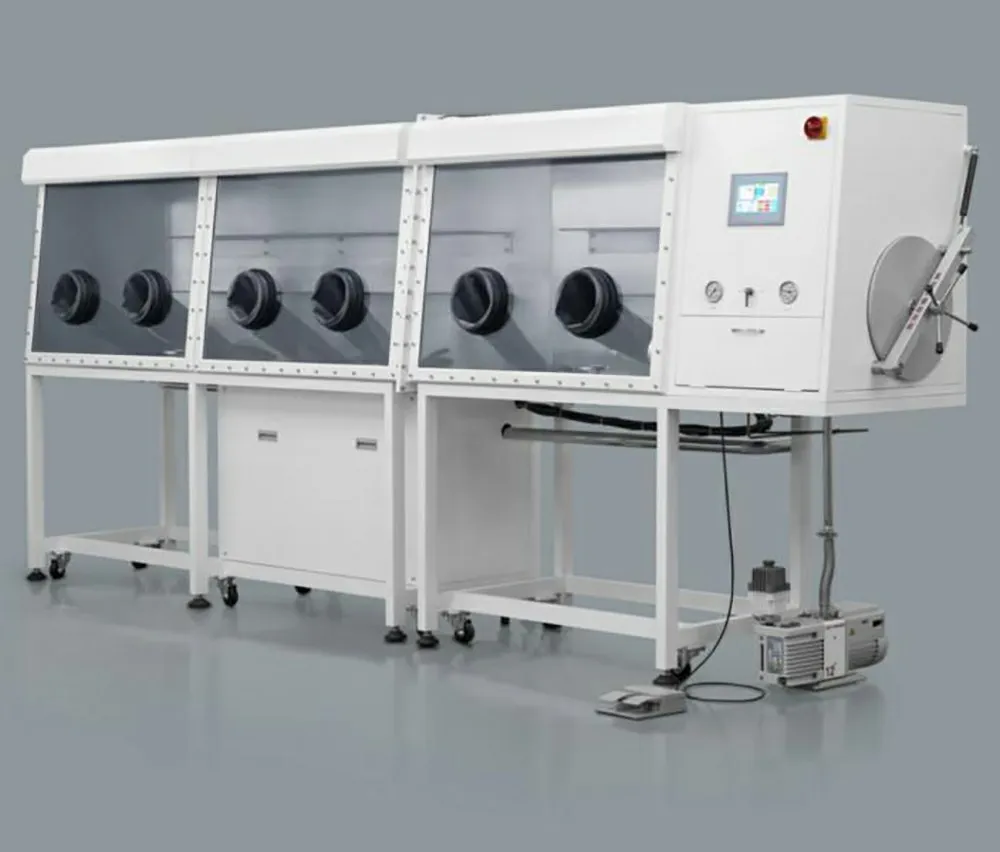

Product Detail 3

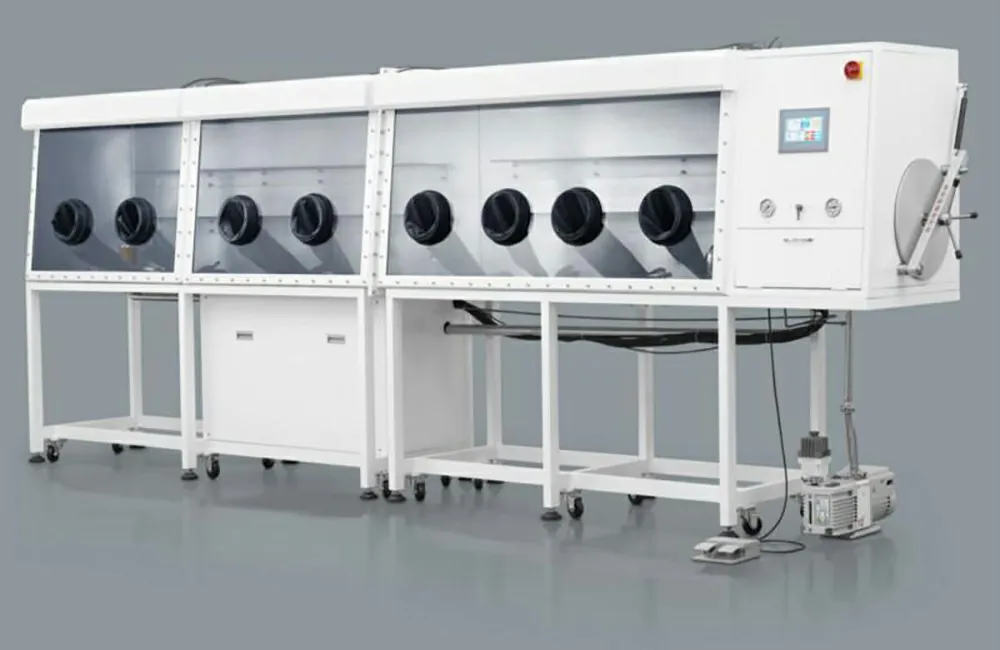

Product Detail 4
Footer Banner
+

Additional Supplies

  • Lithium Battery Materials: Including LiMn2O4, LTO, NMC, LiCoO2, Graphite (MCMB), Aluminum foil, copper foils, and separators.
  • Lithium Battery Equipment: Full sets including mixing, coating, oven, rolling, welding, slitting, winding, and sealing machines.
  • Lithium Battery Technology: Laboratory and production line design services tailored to customer requests.
?

Frequently Asked Questions

What materials is the glove box made of?
The main body of the glove box is constructed from high-quality SS 304 stainless steel for durability and chemical resistance.
What are the vacuum limits for the airlock and main chamber?
The airlock chamber can reach up to 0.05 Torr, while the main glove box chamber is designed for up to 0.5 Torr.
Can the humidity and oxygen levels be monitored?
Yes, the system features humidity control (0-2000ppm) and oxygen control with various ranges available from 0-10ppm up to 25%.
Is the front panel transparent for viewing?
Yes, the unit includes an 8mm tempered glass view window for easy and safe monitoring of operations.
What is the maximum positive pressure allowed?
The maximum positive pressure is 1.1 atm (0.06MPa). Note that the gloves cannot be operated if the pressure exceeds this limit.
Do you provide custom lab designs?
Yes, we can design laboratory and production lines specifically according to individual customer requests and technical needs.
