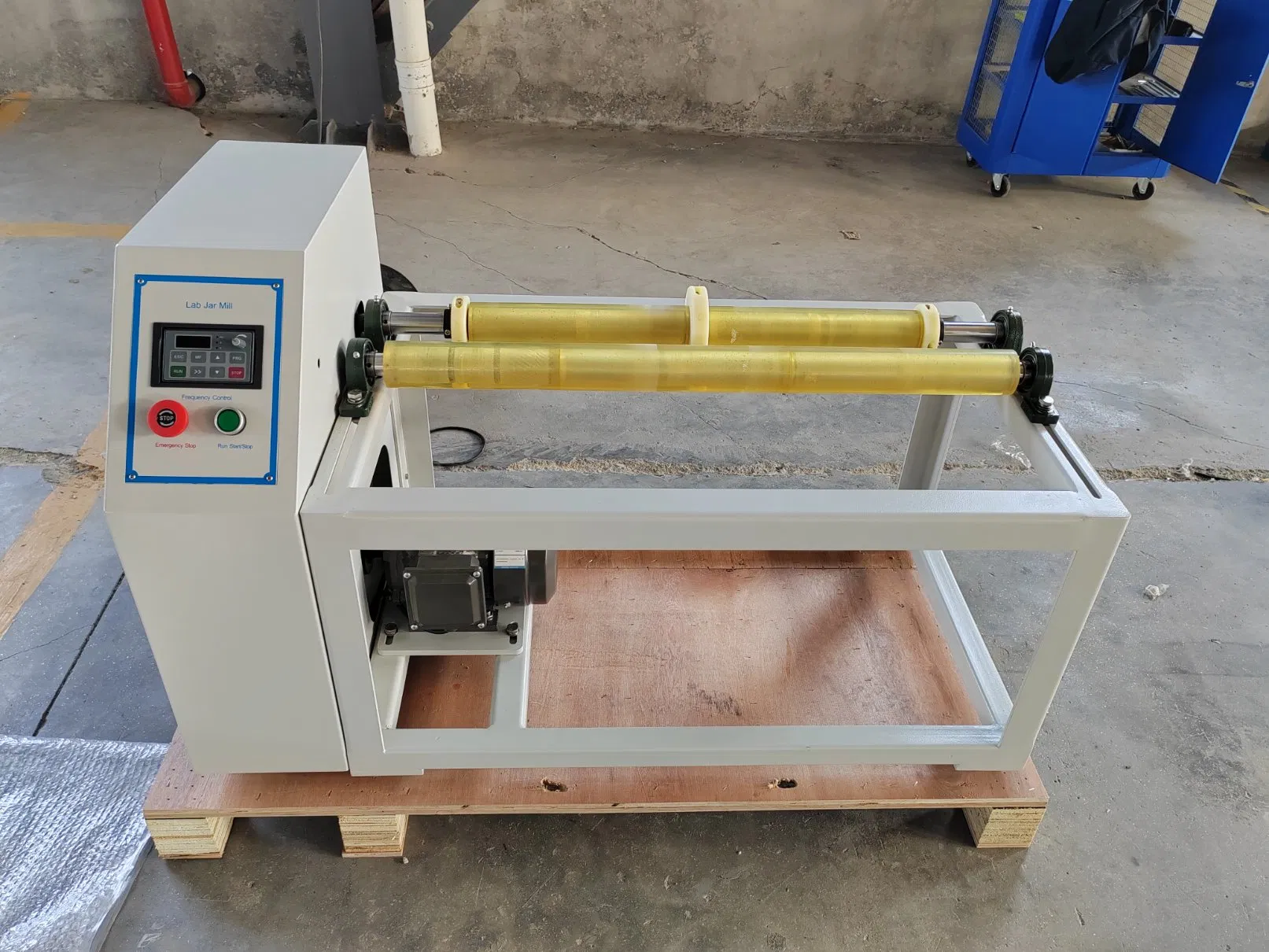

Versatile 2 Workstation Planetary Ball Mill for Laboratory Use

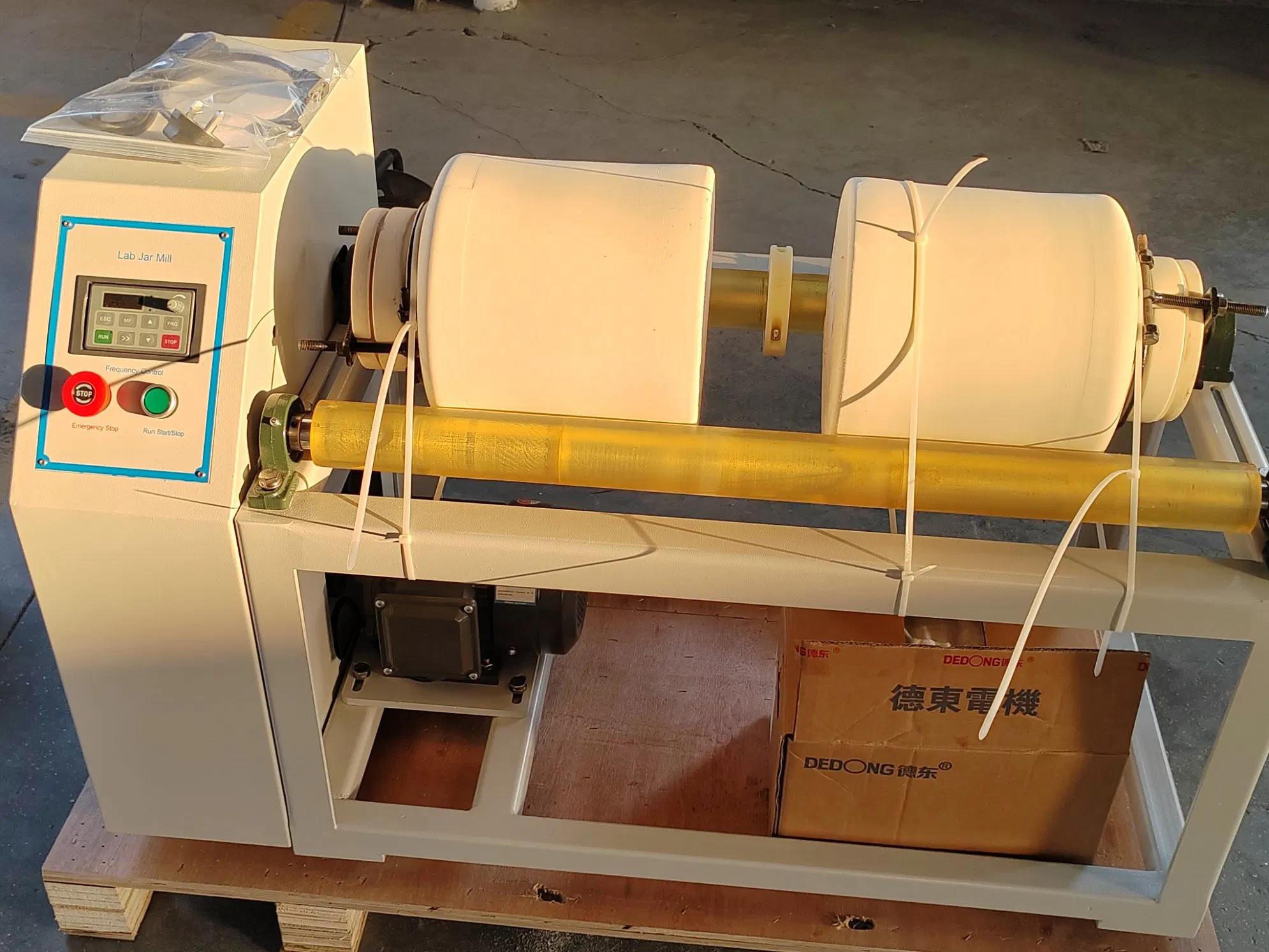

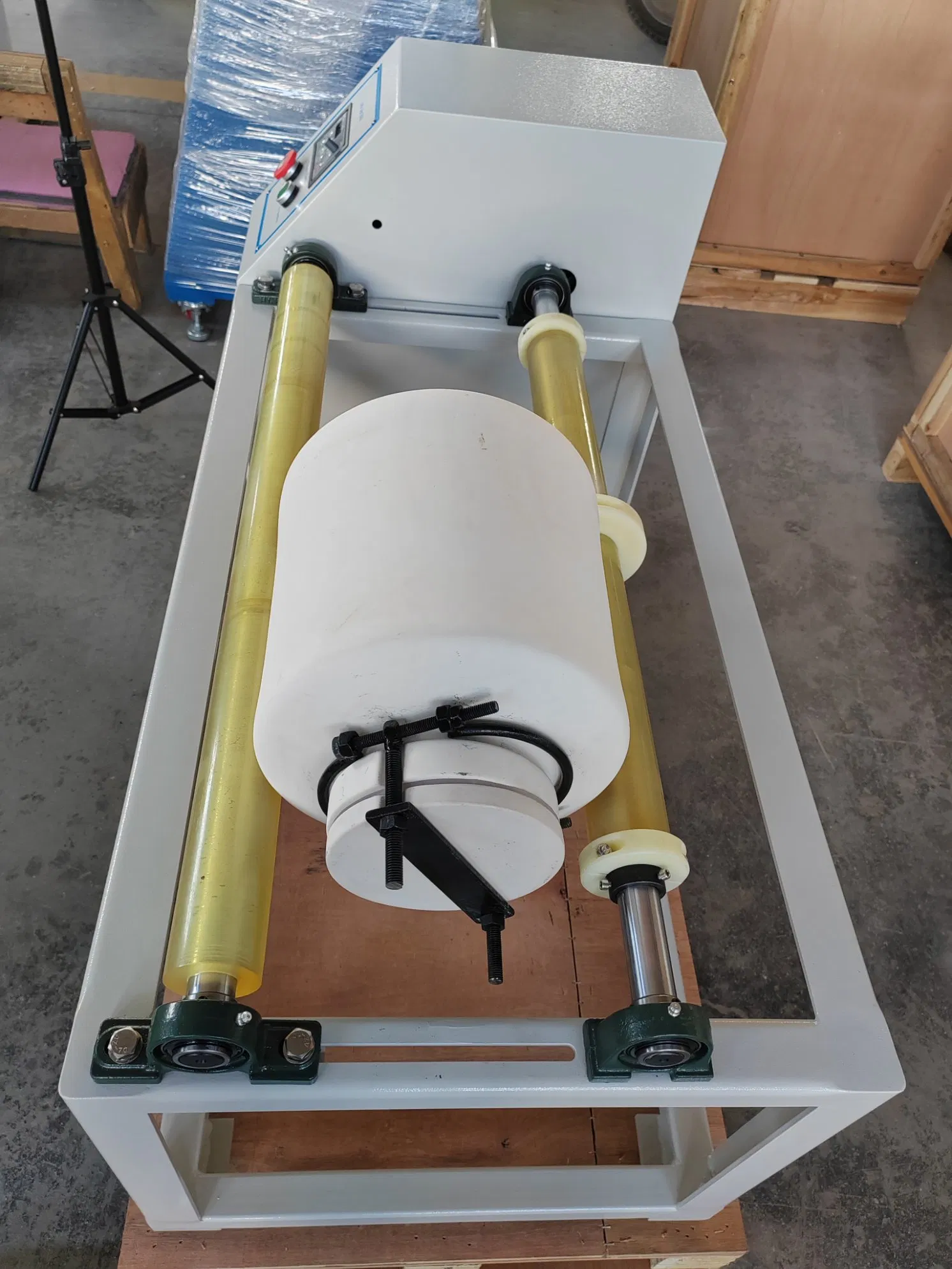

The Rolling Ball Mill is a type of powder milling equipment designed for ultra-fine grinding and mixing in laboratory settings and small batch production. It is an ideal tool for scientific research, education, and experiments due to its compact structure, high efficiency, and uniform granularity.

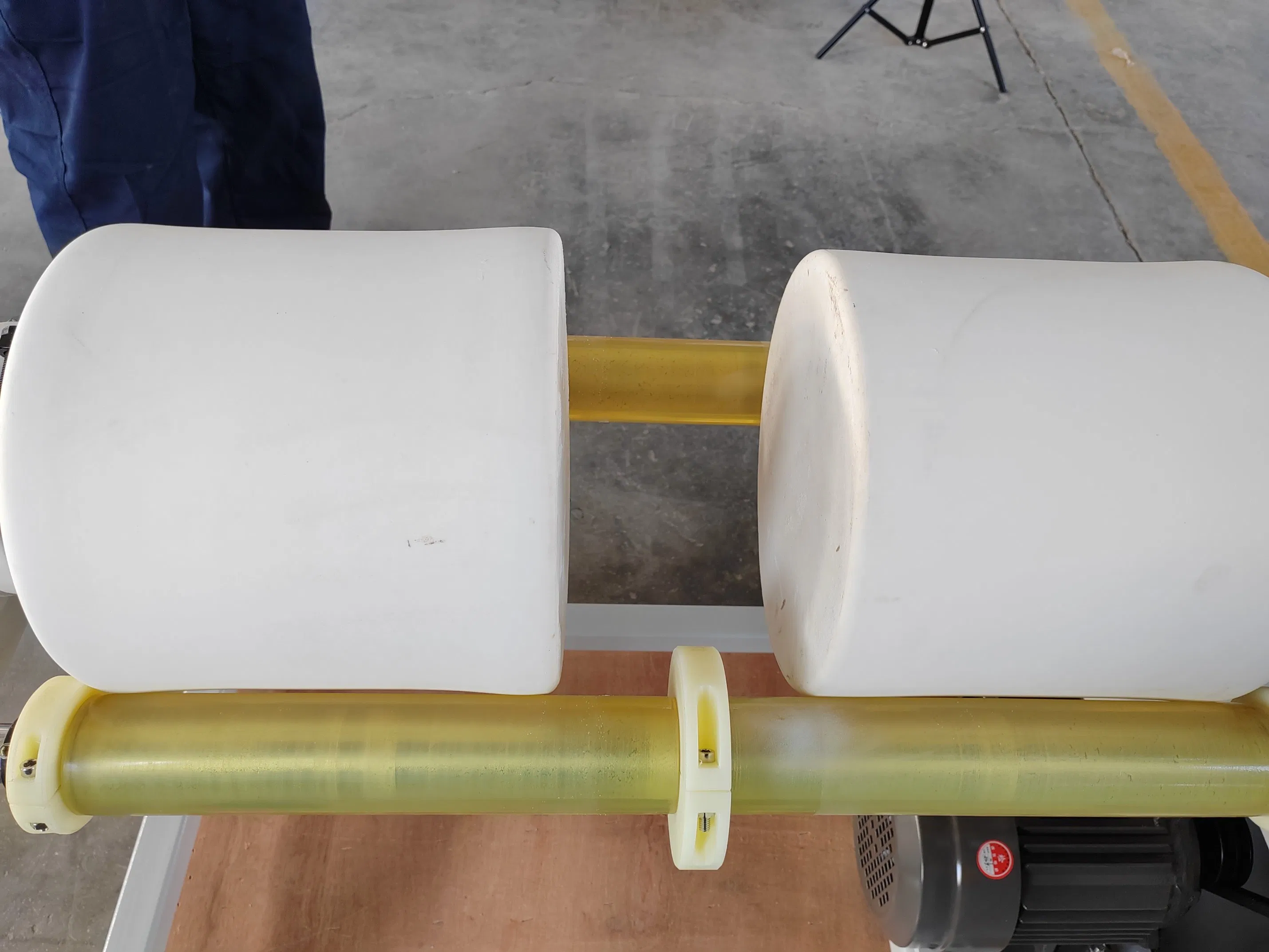

The grinding media and materials within the cylinder are rotated to a specific height. Due to gravity, they fall along the tube wall, crushing the materials through impact, friction, and shear forces generated by the rolling and sliding of the media.
Widely used in industries such as electronics, magnetic materials, biological medicine, ceramic glazes, metal powders, non-metallic minerals, and new materials development.

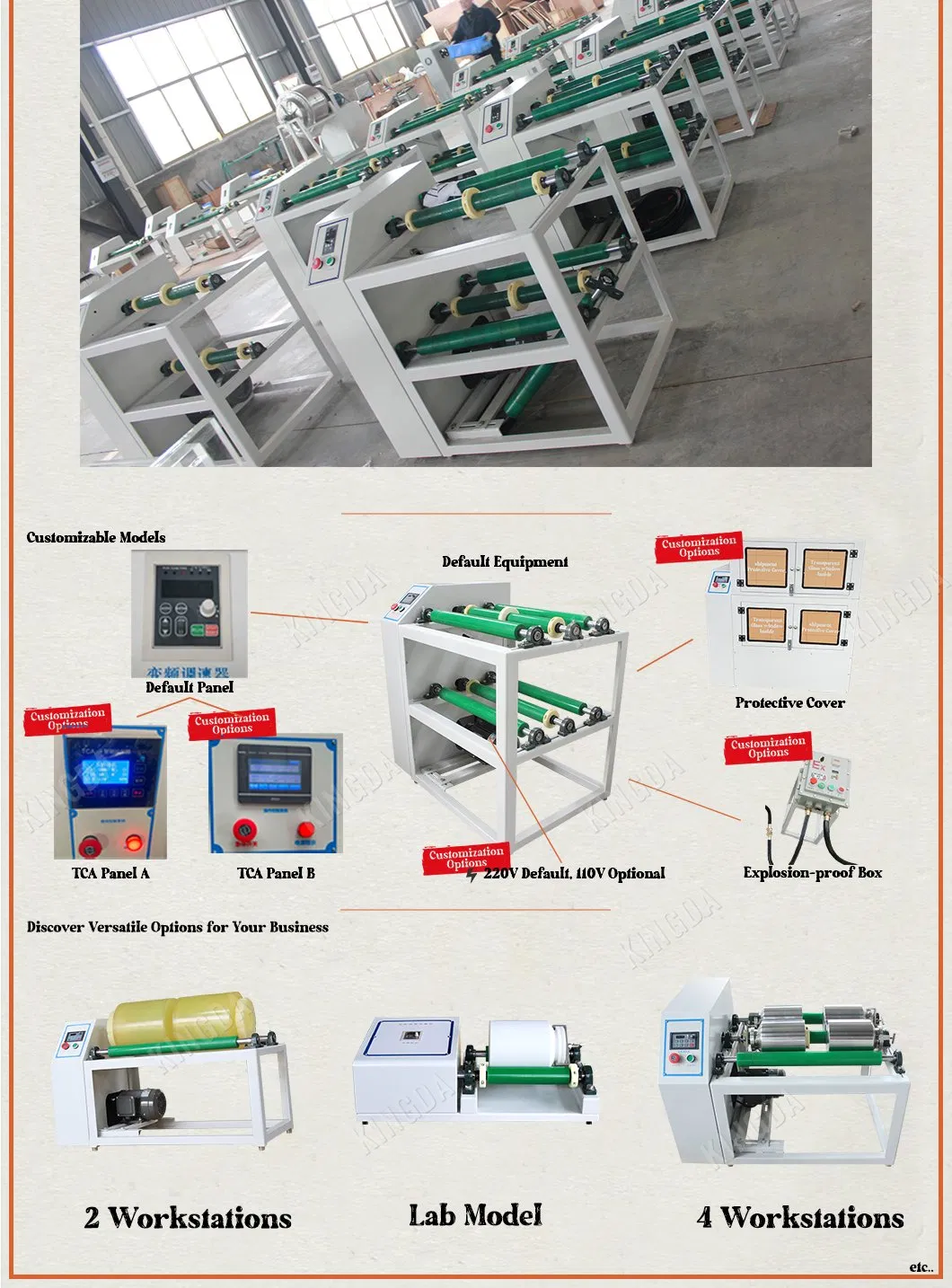

| Category | Dimensions/Weight (mm/kgs) | Model No. | Motor Power (kW) | Voltage | Rotate Speed (rpm) |
|---|---|---|---|---|---|
| Lab Model | 730*415*260/35 | QM-5 | 0.37 | 220V-50Hz | 60-570 |
| 2 Workstation | 950*480*685/72 | GQM-2-5 | 0.75 | 220V-50Hz | 50-410 |
| 4 Workstation | 950*660*690/70 | GQM-4-5 | 0.75 | 220V-50Hz | 50-410 |

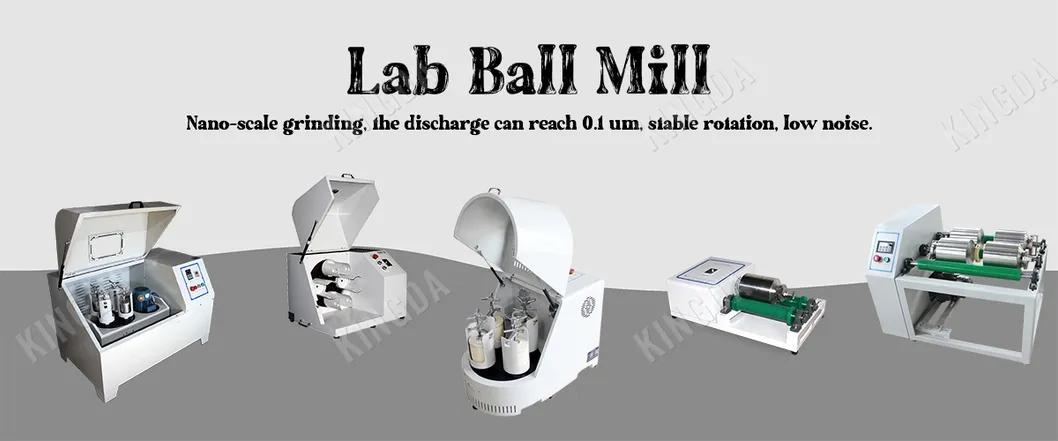

The minimum type is the 0.2L planetary ball mill, weighing approximately 20kgs. We also offer types from 0.4L to 16L for laboratory applications.
The Planetary ball mill is driven by gear and belt, while the Rolling ball mill is driven primarily by belt.
We use special wear-resistant gears or oil seals to significantly reduce noise. Special wear-resistant gears are often superior in terms of maintenance and transportation safety.
We support various delivery terms including EXW, FOB, CFR, CIF, DAP, and DDP to meet global shipping needs.
We provide an 18-month warranty after delivery. During this period, free accessories are provided for any quality-related issues.

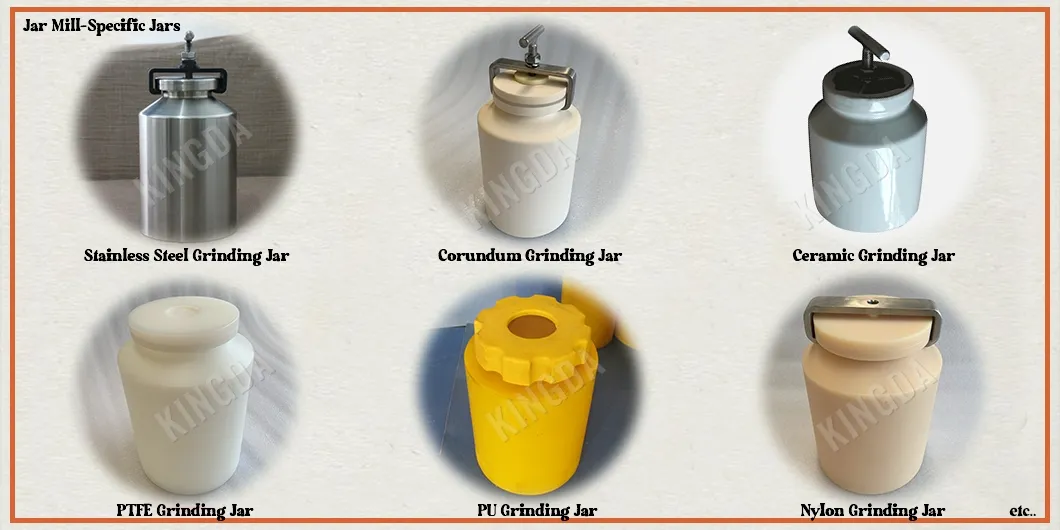

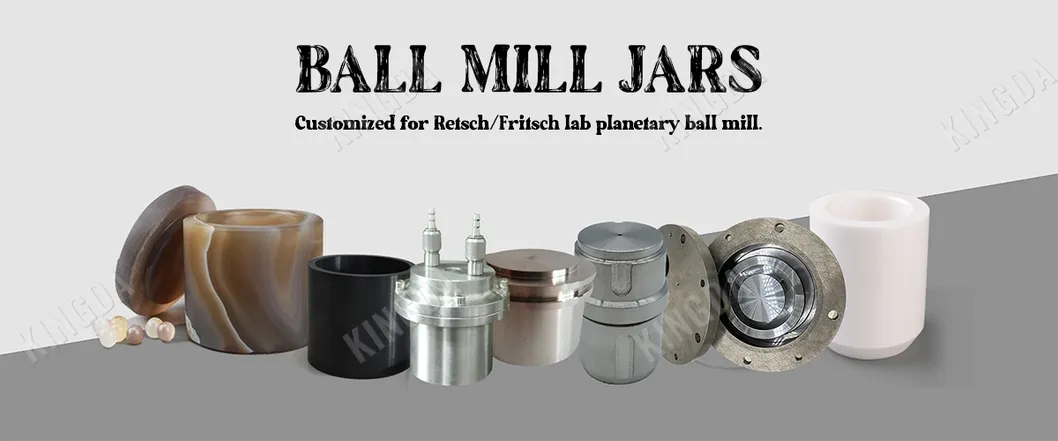

Yes, we can produce a wide variety of grinding balls and jars, such as alumina, zirconia, and stainless steel, according to your specific requirements.
